Description
The PG14L gas generator from Peak Scientific is suitable for laboratory detectors requiring CO2 free gas such as FT-IR analysis. Using Pressure Swing Adsorption technology to remove organic contaminants and moisture from air, these generators provide a consistent flow of air to ensure little background noise in laboratory analysis.
Requiring minimal maintenance, the PG14L does require an external source of air to operate and can be supported by the Precision Air Compressor.
Features
- Purge Gas (PG) generators from Peak Scientific produce air which is free of CO2
- Ideal for commercial labs with a high throughput rate of samples
- High performance filters and PSA ensure maximum reduction of moisture (< -70ºC dew point).
- Few moving parts means minimum maintenance requirements and 24/7 performance
- Position generator where required, wall mountable for small labs
- More cost effective than any other gas supply as the FT-IR detector needs a constant flow of gas
- Completely silent in operation
- Can be supported by Precision Air Compressor
- 12 month full comprehensive on-site warranty
Gas
Gas Type: Air
Max Gas Flow: 14L/min
Max Output Pressure: 100psi/6.9bar
Max Purity: <1ppm CO2
Site & Installation
Gas Outlets Fitting: 1/4” BSP Female
Min Inlet Pressure: 100psi/6.9bar
Max Inlet Pressure: 120psi/8.3bar
Power Consumption: 240 W
Voltage: 120 – 240 V
Frequency: 50 / 60 Hz
Current: 8 A
Max Operating Temp: 25°C / 77°F
Particles: < 0.01 µm
Accreditations: CE

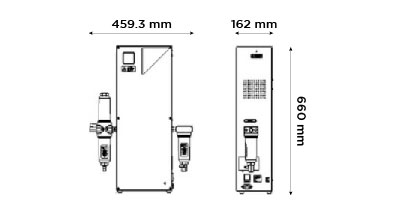

Dimensions & weight
Size (HxWxD) mm: 660 x 459 x 162 mm
Size (HxWxD) Inches: 26 x 18.1 x 6.4 inches
Generator Weight: 14kg / 30.8lbs
Service Requirements
Annual replacement of particulate filters
