Description
The Infinity 1031 delivers high purity nitrogen and dry air to support Sciex LC-MS systems. A compressor-free solution, the Infinity 1031 requires an air source to operate. With few moving parts this generator has minimal maintenance requirements and can operate 24 hours a day for hassle free nitrogen.
Features
- Capable of supplying most Sciex LC-MS/MS systems
- 24/7 operation at optimum performance
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 19
Max Output Pressure: 110psi/7.6bar
Gas Type: Air
Max Gas Flow: 26L/min
Max Output Pressure: 110psi/7.6bar
Gas Type: Air
Max Gas Flow: 25L/min
Max Output Pressure: 110psi/7.6bar
Site & Installation
Min Inlet Pressure: 120psi/8.3bar
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: 115
Min Inlet Air Quality: 1.4.1
Start Up Time: 30 mins
Power Consumption: none
Voltage: N/A
Frequency: N/A
Current: N/A
Heat output: none
Max Operating Temp: 30°C / 86°F
Particles: <0.01 μm
Phthalates: none
Suspended Liquids: none
Accreditations: CE

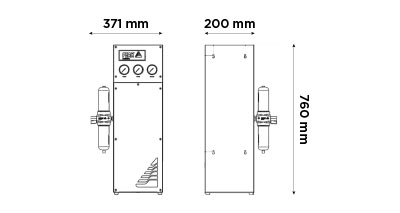

Dimensions & weight
Size (HxWxD) mm: 760 x 365 x 200 mm
Size (HxWxD) Inches: 29.9 x 14.4 x 7.9 inches
Generator Weight: 14kg / 30.8lbs
