Application Types: LC-MS

Part number:10-1017

Integrated compressor: Yes

Description

The Genius N118LA is a nitrogen generator which can provide carrier gas for LC-MS applications requiring flow rates of up to 18 L/min.


Features

  • Delivers laboratory-grade nitrogen at up to 18 L/min
  • Compressor based solution, no need for an external air supply
  • Safe and practical laboratory-grade nitrogen
  • Service indication to allow planning of preventative maintenance
  • High-specification latest generation compressors located in insulated chamber reducing noise and vibration
  • Minimal set-up required Highly economical source of nitrogen gas with low lifetime running costs Gas is supplied on demand so generator works to your schedule
  • Proven robust and reliable nitrogen gas generation technology
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 18L/min

Max Output Pressure: 100psi/6.9bar


Site & Installation

Start Up Time: 30 mins

Power Consumption: 828 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 3.6 A

Heat output: 2823 BTU

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CSA, CE


Dimensions & weight

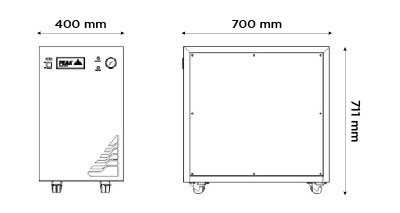

Genius N118LA Dimensions 01Size (HxWxD) mm: 711 x 400 x 700 mm

Size (HxWxD) Inches: 28 x 15.7 x 27.6 inches

Generator Weight: 60kg / 132lbs
