Application Types: LC-MS

Part number:10-6020 (230v)
10-6520 (110v)

Integrated compressor: Yes


The culmination of over a decade’s work perfecting on-site gas generation for LC-MS, the Genius NM32LA is the pinnacle of our Genius series. With thousands of units in the field, the NM32LA has become the proven and reliable nitrogen generator of choice in countless laboratories across the world.

The NM32LA delivers up to 32 liters per minute of nitrogen gas, suitable for most LC-MS instruments available on the market today.


  • Compressor based solution, no need for an external air supply
  • Service indication to allow planning of preventative maintenance
  • High-specification latest generation compressors located in insulated chamber reducing noise and vibration
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • Proven robust and reliable nitrogen gas generation technology
  • Safe and practical laboratory-grade nitrogen
  • 12 month comprehensive on-site warranty


Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Gas Outlets Fitting: 1/4″ BSP

Start Up Time: 30 mins

Power Consumption: 1680 VA

Voltage: 110 / 240 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 11 / 7 A

Heat output: 5729 BTU

Max Operating Temp: 30°C / 86°F

Particles: <0.01μm

Phthalates: none

Contaminants: none

Suspended Liquids: none

Accreditations: CSA, FCC, CE

Dimensions & weight

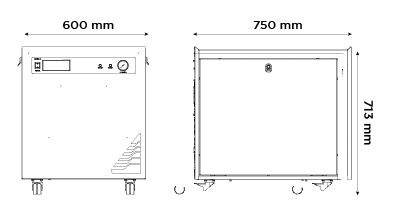

Genius NM32LA DimensionsSize (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 103kg / 226.6lbs
